Bag Filter / Dust Collection Systems

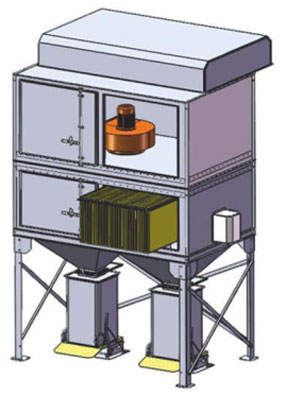

Reverse Pulse Type Dust Collector

Continuous duty dust collector
Filters are cleaned online during continuous operation

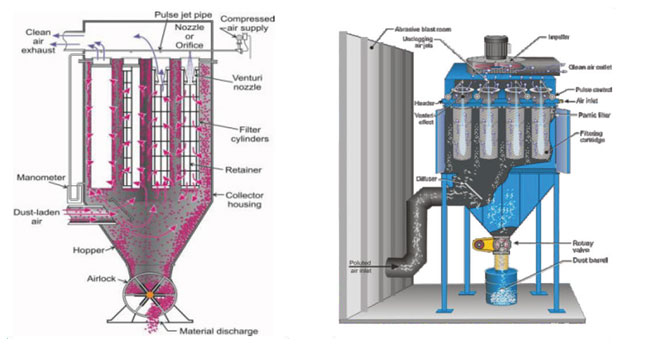

During normal operation dust laden air enters the unit through the air & dust inlet.
The velocity is reduced when dust particles enter and natural per separation is caused by gravity. Heavier particles will fall directly into the collection tank through hopper and fine particles will accumulate on the outer surface of the filter bags. The clean filtered air passes through the clean air outlet.
The fine dust particles that are accumulated in the outer surface of the filter bags are cleaned by the reverse pulse jet cleaning system using compressed air at regular time intervals, this dust will be collected in the collection tank.
Sometimes used Dust collection System as a material I product recovery.
